On spacelike equiform-Bishop Smarandache curves on \(S_{1}^{2}\)

Journal of the Egyptian Mathematical Society volume 27, Article number: 7 (2019) Cite this article

Abstract

In this paper, we introduce the equiform-Bishop frame of a spacelike curve r lying fully on \(S_{1}^{2}\) in Minkowski 3-space \(\mathbb {R}^{3}_{1}\). By using this frame, we investigate the equiform-Bishop Frenet invariants of special spacelike equiform-Bishop Smarandache curves of a spacelike base curve in \(\mathbb {R}^{3}_{1}\). Furthermore, we study the geometric properties of these curves when the spacelike base curve r is specially contained in a plane. Finally, we give a computational example to illustrate these curves.

Introduction

In the theory of curves in the Euclidean and Minkowski spaces, a regular curve whose position vector is composed by Frenet frame vectors on another regular curve is called a Smarandache curve [1].

Smarandache geometries were proposed by Smarandache in [2] which are generalization of classical geometries, i.e., these Euclid, Lobachevshy-Bolyai-Gauss, and Riemann geometries may be united altogether in the same space, by some Smarandache geometries under the combinatorial procedure. These geometries can be either partially Euclidean and partially non-Euclidean or only non-Euclidean.

An axiom is said to be Smarandachely denied if the axiom behaves in at least two different ways within the same space, i.e., validated and invalided, or only invalided but in multiple distinct ways [3–6].

A Smarandache geometry is a geometry which has at least one Smarandachely denied axiom (1969). Recently, special Smarandache curves have been studied by some authors [7–11].

In this work, we introduce the equiform-Bishop frame of a spacelike curve r lying fully on \(S_{1}^{2}\) in Minkowski 3-space \(\mathbb {R}^{3}_{1}\). Also, we introduce a special spacelike equiform-Bishop Smarandache curves according to these frame of a spacelike curve r in \(\mathbb {R}^{3}_{1}\). In the “Basic concepts” section, we give the basic conceptions of Minkowski 3-space \(\mathbb {R}^{3}_{1}\), the Bishop frame, and the equiform-Bishop frame that will be used during this work. In the “Main results” section, we investigate the special spacelike euiform-Bishop TB1,TB2,B1B2, and TB1B2-Smarandache curves in terms of the equiform-Bishop curvature functions K1(σ), and K2(σ) of the spacelike curve r in \(\mathbb {R}^{3}_{1}\). Furthermore, we obtain some properties on these curves when the spacelike base curve r is contained in a plane. In the “Example” section, we give a computational example to clarify these curves. We hope these results will be helpful to mathematicians who are specialized on mathematical modeling.

Basic concepts

The Minkowski 3-space \(\mathbb {R}_{1}^{3}\) is the Euclidean 3-space \(\mathbb {R}^{3}\) provided with the Lorentzian inner product

$$\mathcal{D}=-d\varsigma_{1}^{2}+d\varsigma_{2}^{2}+d\varsigma_{3}^{2}, $$

where (ς1,ς2,ς3) is a rectangular coordinate system of \(\mathbb {R}_{1}^{3}\). The arbitrary vector \(\upsilon \in \mathbb {R}_{1}^{3}\) can have one of three Lorentzian clause depicts; it can be spacelike if \(\mathcal {D}(\upsilon,\upsilon)>0\) or υ=0, timelike if \(\mathcal {D}(\upsilon,\upsilon)<0\), and lightlike if \(\mathcal {D}(\upsilon,\upsilon)=0\) and υ≠0. Similarly, a curve r parametrized by \(r=r(s):I\subset \mathbb {R}\rightarrow \mathbb {R}_{1}^{3} \) can be spacelike, timelike, or lightlike if all of its velocity vectors r′(s) are spacelike, timelike, or lightlike, respectively [12, 13].

Denote by {t,n,b} the moving Frenet frame along the regular spacelike curve r with arc-length parameter s in \(\mathbb {R}_{1}^{3}\). The Frenet trihedron consists of the tangent vector t, the principal normal vector n, and the binormal vector b. Then, the Frenet frame has the following properties [12]:

$$ \left(\begin{array}{c} \dot{t}(s) \\ \dot{n}(s) \\ \dot{b}(s) \end{array} \right)=\left(\begin{array}{ccc} 0 & {\kappa}(s) & 0 \\ -{\varepsilon}{\kappa}(s) & 0 & {\tau}(s) \\ 0 & {\tau}(s) & 0 \end{array} \right)\left(\begin{array}{c} t(s) \\ n(s)\\ b(s) \end{array} \right), $$
(1)

where \(\left (\,\cdot =\frac {d}{ds}\right), {\varepsilon }=\pm 1, \mathcal {D}(t,t)=1, \mathcal {D}(n,n)={\varepsilon }, \mathcal {D}(b,b)=-{\varepsilon }\), and \(\mathcal {D}(t,n)=\mathcal {D}(t,b)=\mathcal {D}(n,b)=0\). If ε=1, then r=r(s) is a spacelike curve with spacelike principal normal n and timelike binormal b. Also, if ε=−1, then r=r(s) is a spacelike curve with timelike principal normal n and spacelike binormal b.

Let r=r(s) be a regular curve in \(\mathbb {R}_{1}^{3}\). If the tangent vector field of this curve forms a constant angle with a constant vector field U, then this curve is called a general helix or an inclined curve [14].

Definition 1

A regular curve in Minkowski 3-space, whose position vector is composed by Frenet frame vectors on another curve, is called a Smarandache curve [15].

The Bishop frame or parallel transport frame is an alternative approach to defining a moving frame that is well defined even when the curve has vanishing second derivative [16,17].

Let us consider the Bishop frame {t,b1,b2} of the spacelike curve r(s) with a spacelike or timelike normal b1(ε=1 or ε=−1). The Bishop frame {t,b1,b2} is expressed as [17,18].

$$ \left(\begin{array}{c} \dot{t}(s) \\ \dot{b}_{1}(s) \\ \dot{b}_{2}(s) \end{array} \right)=\left(\begin{array}{ccc} 0 & k_{1}(s) & -k_{2}(s) \\ -{\varepsilon} k_{1}(s) & 0 & 0 \\ -{\varepsilon} k_{2}(s) & 0 & 0 \end{array} \right) \left(\begin{array}{c} t(s) \\ b_{1}(s) \\ b_{2}(s) \end{array} \right), $$
(2)

where \(\mathcal {D}(t,t)=1, \mathcal {D}(b_{1},b_{1})={\varepsilon }, \mathcal {D}(b_{2},b_{2})=-{\varepsilon }\) and \(\mathcal {D}(t,b_{1})=\mathcal {D}(t,b_{2})=\mathcal {D}(b_{1},b_{2})=0\). Here, we shall call k1(s) and k2(s) as Bishop curvatures. The relation matrix may be expressed as

$$ \left(\begin{array}{c} t(s) \\ b_{1}(s) \\ b_{2}(s) \end{array} \right)=\left(\begin{array}{ccc} 1 & 0 & 0 \\ 0 & \cosh{\theta(s)} & \sinh{\theta(s)} \\ 0 & \sinh{\theta(s)} & \cosh{\theta(s)} \end{array} \right) \left(\begin{array}{c} t(s) \\ n(s) \\ b(s) \end{array} \right), $$
(3)

where

$$ \left\{\begin{array}{ccc} \theta(s)=arg\tanh{\left(\frac{k_{2}}{k_{1}}\right)},\,\,k_{1}\neq0 \\ {\tau}(s)=-{\varepsilon}\,\frac{d\theta(s)}{ds},\\ {\kappa}(s)=\sqrt{|k_{1}^{2}(s)-k_{2}^{2}(s)|}, \end{array}\right. $$
(4)

and

$$\left\{\begin{array}{c} k_{1}(s)={\kappa}(s)\cosh{\theta(s)}, \\ k_{2}(s)={\kappa}(s)\sinh{\theta(s)}. \end{array}\right. $$

Let \(r:I\subset \mathbb {R}\rightarrow \mathbb {R}_{1}^{3}\) be a spacelike curve in Minkowski space \(\mathbb {R}_{1}^{3}\). We define the equiform-Bishop parameter of r by \(\sigma =\int k_{1} ds\). Then, we have \(\rho =\frac {ds}{d\sigma }\), where \(\rho =\frac {1}{k_{1}}\) is the radius of curvature of the curve r. We recall {T,B1,B2,} be the moving equiform-Bishop frame where T(σ)=ρ t(s),B1(σ)=ρ b1(s), and B2(σ)=ρ b2(s) are the equiform-Bishop tangent vector, equiform-Bishop principal normal vector, and equiform-Bishop binormal vector respectively. Additionally, the first and second equiform-Bishop curvatures of the curve r=r(σ) are defined by \(K_{1}(\sigma)=\dot {\rho }=\frac {d\rho }{ds}\) and \(K_{2}(\sigma)=\frac {k_{2}}{k_{1}}\). So, the moving equiform-Bishop frame of r=r(σ) is given as [19]:

$$ {\kern-15.5pt}{\left(\begin{array}{c} T'(\sigma) \\ B'_{1}(\sigma) \\ B'_{2}(\sigma) \end{array} \right)=\left(\begin{array}{ccc} K_{1}(\sigma) \,\,\,& 1 \,\,\,& -K_{2}(\sigma) \\ -{\varepsilon} \,\,\,& K_{1}(\sigma) \,\,\,& 0 \\ -{\varepsilon} K_{2}(\sigma) \,\,\,& 0 \,\,\,& K_{1}(\sigma) \end{array} \right)\left(\begin{array}{c} T(\sigma) \\ B_{1}(\sigma) \\ B_{2}(\sigma) \end{array} \right),} $$
(5)

where \(\left (\,'=\frac {d}{d\sigma }\right), \mathcal {D}(T,T)=\rho ^{2}, \mathcal {D}(B_{1},B_{1})={\varepsilon } \rho ^{2}, \mathcal {D}(B_{2},B_{2})=-{\varepsilon }\rho ^{2}\), and \(\mathcal {D}(T,B_{1})=\mathcal {D}(T,B_{2})= \mathcal {D}(B_{1},B_{2})=0\).

The pseudo-Riemannian sphere of unit radius and with center in the origin in the space \(\mathbb {R}_{1}^{3}\) is defined by

$$S_{1}^{2}=\{p\in\mathbb{R}_{1}^{3}:\,\mathcal{D}(p,p)=1\}. $$

Main results

In this section, we introduce a special spacelike equiform-Bishop Smarandache curves according to the equiform-Bishop frame in Minkowski 3-space \(\mathbb {R}_{1}^{3}\). Furthermore, we obtain the natural curvature functions of these curves and studying some properties on it when the spacelike base curve r=r(s) specially is contained in a plane. Let r=r(σ) be a regular unit speed spacelike curve with spacelike equiform-Bishop principal normal and timelike equiform-Bishop binormal.

Definition 2

Let \(r:I\subset \mathbb {R}\rightarrow S_{1}^{2}\) be a regular unit speed spacelike curve lying fully on \(S^{2}_{1}\). The spacelike equiform-Bishop TB1-Smarandache curve \({\varphi }:I\subset \mathbb {R}\rightarrow S_{1}^{2}\) of r defined by

$$ \varphi=\varphi(\sigma^{\ast})=\frac{1}{\sqrt{2}\,\rho}\left(a\,T(\sigma)+b\,B_{1}(\sigma)\right),{\quad} a^{2}+ b^{2}=2. $$
(6)

Theorem 1

Let \(r:I\subset \mathbb {R}\rightarrow S_{1}^{2}\) be a regular unit speed spacelike curve lying fully on \(S^{2}_{1}\) with the moving equiform-Bishop frame {T,B1,B2}. If \({\varphi }:I\subset \mathbb {R}\rightarrow S_{1}^{2}\) is the spacelike equiform-Bishop TB1-Smarandache curve of r=r(σ) with non-zero natural curvature functions, then its Frenet frame {Tφ,Nφ,Bφ} is given by

$$ \begin{aligned} \left(\begin{array}{c} T_{\varphi} \\ N_{\varphi} \\ B_{\varphi} \end{array} \right)=\left(\begin{array}{ccc} \frac{-b}{\rho\sqrt{b^{2}+a^{2}(1-K^{2}_{2})}} & \frac{a}{\rho\sqrt{b^{2}+a^{2}(1-K^{2}_{2})}} & \frac{-{aK}_{2}}{\rho\sqrt{b^{2}+a^{2}(1-K^{2}_{2})}} \\ \frac{\omega_{1}}{\rho\sqrt{\omega_{1}^{2}+\omega_{2}^{2}-\omega_{3}^{2}}} & \frac{\omega_{2}}{\rho\sqrt{\omega_{1}^{2}+\omega_{2}^{2}-\omega_{3}^{2}}}& \frac{{\omega}_{3}}{\rho\sqrt{{\omega}_{1}^{2}+{\omega}_{2}^{2}-{\omega}_{3}^{2}}}\\ \frac{-a(\omega_{3}+\omega_{2}K_{2})}{\Delta_{1}}& \frac{a\omega_{1}K_{2}-b\omega_{3}}{\Delta_{1}} & \frac{-(a\omega_{1}+b\omega_{2})}{\Delta_{1}} \end{array} \right)\left(\begin{array}{c} T \\ B_{1} \\ B_{2} \end{array} \right), \end{aligned} $$
(7)

where

$$ \begin{aligned} &\omega_{1}=a\left(K^{2}_{2}-1\right)\left[b^{2}+a^{2}\left(1-K^{2}_{2}\right)\right]-2a^{2}{bK}_{2}K'_{2}, \\&\omega_{2}=2a^{3}K_{2}K'_{2}-b\left[b^{2}+a^{2}\left(1-K^{2}_{2}\right)\right],\\ &\omega_{3}=\left({bK}_{2}-aK'_{2}\right)\left[b^{2}+a^{2}\left(1-K^{2}_{2}\right)\right]-2a^{3}K^{2}_{2}K'_{2},\\ &\Delta_{1}=\rho^{2}\sqrt{\omega_{1}^{2}+\omega_{2}^{2}-\omega_{3}^{2}}\sqrt{b^{2}+a^{2}\left(1-K^{2}_{2}\right)}. \end{aligned} $$
(8)

Proof

Differentiationg Eq. (6) with respect to σ and using Eq. (5), we get

$$ \varphi'(\sigma^{\ast})=\frac{d\varphi}{d\sigma^{\ast}}\frac{d\sigma^{\ast}}{d\sigma}=\frac{1}{\sqrt{2}\,\rho}\left(b\,T(\sigma)+a\,B_{1}(\sigma)-{aK}_{2}B_{2}(\sigma)\right), $$
(9)

hence

$$ {}T_{\varphi}(\sigma^{\ast})=\frac{1}{\rho\sqrt{b^{2}+a^{2}\left(1-K^{2}_{2}\right)}}\left(b\,T(\sigma)+a\,B_{1}(\sigma)-{aK}_{2}B_{2}(\sigma)\right), $$
(10)

with the parameterization

$$ \frac{d\sigma^{\ast}}{d\sigma}=\frac{\rho\sqrt{b^{2}+a^{2}\left(1-K^{2}_{2}\right)}}{\sqrt{2}}\,. $$
(11)

Again differentiating Eq. (10) with respect to σ, we have

$${\kern-14.5pt}T'_{\varphi}(\sigma^{\ast})\,=\,\frac{\sqrt{2}}{\rho\left[b^{2}+a^{2}\left(1-K^{2}_{2}\right)\right]^{2}}\left(\omega_{1}T(\sigma)+\omega_{2}B_{1}(\sigma)+\omega_{3} B_{2}(\sigma)\right). $$

where

$$\begin{aligned} &\omega_{1}=a\left(K^{2}_{2}-1\right)\left[b^{2}+a^{2}\left(1-K^{2}_{2}\right)\right]-2a^{2}{bK}_{2}K'_{2}, \\&\omega_{2}=2a^{3}K_{2}K'_{2}-b\left[b^{2}+a^{2}\left(1-K^{2}_{2}\right)\right],\\ &\omega_{3}=\left({bK}_{2}-aK'_{2}\right)\left[b^{2}+a^{2}\left(1-K^{2}_{2}\right)\right]-2a^{3}K^{2}_{2}K'_{2}. \end{aligned} $$

The curvature and the principal normal of φ are given as follows

$${\kappa}_{\varphi}(\sigma^{\ast})=\left\|T'_{\varphi}(\sigma^{\ast})\right\|=\frac{\sqrt{2}\sqrt{\omega_{1}^{2}+\omega_{2}^{2}-\omega_{3}^{2}}}{\left[b^{2}+a^{2}\left(1-K^{2}_{2}\right)\right]^{2}}, $$

and

$$N_{\varphi}(\sigma^{\ast})=\frac{\omega_{1}T(\sigma)+\omega_{2}B_{1}(\sigma)+\omega_{3}B_{2}(\sigma)}{\rho\sqrt{\omega_{1}^{2}+\omega_{2}^{2}-\omega_{3}^{2}}}. $$

On the other hand, we can express

$$\begin{aligned} B_{\varphi}(\sigma^{\ast})&=\frac{1}{\Delta_{1}}\left\{-a(\omega_{3}+\omega_{2}K_{2})T(\sigma)+a\omega_{1}K_{2}-b\omega_{3}B_{1}(\sigma)\right.\\ & \left.\quad-(a\omega_{1}+b\omega_{2})B_{2}(\sigma)\right\}, \end{aligned} $$

where

$$\Delta_{1}=\rho^{2}\sqrt{\omega_{1}^{2}+\omega_{2}^{2}-\omega_{3}^{2}}\sqrt{b^{2}+a^{2}\left(1-K^{2}_{2}\right)}. $$

Now, from Eq. (9), we have

$${\begin{aligned} \varphi^{\prime\prime}(\sigma^{\ast})\,=\, \frac{1}{\sqrt{2}\,\rho}&\left\{a\left(K^{2}_{2}-1\right)T(\sigma)\,-\,b\,B_{1}(\sigma) +\left({bK}_{2}-aK'_{2}\right)B_{2}(\sigma) \right\}, \end{aligned}} $$

similarly

$$\varphi^{\prime\prime\prime}(\sigma^{\ast})= \frac{1}{\sqrt{2}\,\rho}\left(\mu_{1}T(\sigma)+\mu_{2}B_{1}(\sigma)+\mu_{3}B_{2}(\sigma)\right), $$

where

$$\begin{aligned} &\mu_{1}=aK'_{2}(1+k_{2})+K_{1}({aK}_{2}+{bK}_{1}-a)+2bK'_{1}, \\ &\mu_{2}=({aK}_{2}+{bK}_{1}-a)-b\left(K_{1}K'_{1}+ K^{\prime\prime}_{1}\right),\\ &\mu_{3}=- K_{2}({aK}_{2}+{bK}_{1}-a)-a\left(K_{1}K^{\prime}_{1}+ K^{\prime\prime}_{2}\right). \end{aligned} $$

As a consequence with the above computation, the torsion of φ is obtained as

$${\begin{aligned} {\tau}_{\varphi} \,=\,\frac{\!\sqrt{2}}{\rho}\!\left\{\!\frac{\left[{aK}_{2}+{bK}_{1}-a\right]\left[\mu_{3}(a-{bK}_{1})-a\mu_{2}K_{2}\right]-a\mu_{1}\left[K'_{2}({bK}_{1}-a)-bK'_{1}K_{2}\right]} {\left[a^{2}K'_{2}-2{abK}_{2}\right]^{2}+\left[b\left(aK'_{2}-{bK}_{2}\right)-a^{2}K_{2}\left(K^{2}_{2}-1\right)\right]^{2}-\left[b^{2}-a^{2}\left(K^{2}_{2}-1\right)\right]^{2}} \right\}\,. \end{aligned}} $$

□

Corollary 1

Let \(r:I\subset \mathbb {R}\rightarrow S_{1}^{2}\) be a regular unit speed spacelike curve lying fully on \(S^{2}_{1}\) with the moving equiform-Bishop frame {T,B1,B2}. If the base curve r=r(s) is contained in a plane, then the spacelike equiform-Bishop TB1-Smarandache curve is a circular helix if \(\,K_{2}\neq \pm \frac {\sqrt {2}}{a}\) and K2≠±1. Moreover, its natural curvature functions are dependent only on the second equiform-Bishop curvature and given by

$$ {\begin{aligned} &{\kappa}_{\varphi}(\sigma^{\ast})=\frac{\sqrt{2}\sqrt{a^{2}\left(1-K^{2}_{2}\right)^{2}+b^{2}\left(1-K^{2}_{2}\right)}} {b^{2}+a^{2}(1-K^{2}_{2})},\\& {\tau}_{\varphi}(\sigma^{\ast})=\left\{\frac{\sqrt{2}}{\rho}\right\}\left\{\frac{\sqrt{2}(1+a)(1-K_{2})} {4a^{2}b^{2}K^{2}_{2}+\left(K^{2}_{2}-1\right)\left[b^{2}-a^{2}\left(K^{2}_{2}-1\right)\right]^{2}}\right\}. \end{aligned}} $$
(12)

Definition 3

Let \(r:I\subset \mathbb {R}\rightarrow S_{1}^{2}\) be a regular unit speed spacelike curve lying fully on \(S^{2}_{1}\). The spacelike equiform-Bishop TB2-Smarandache curve \({\varphi }:I\subset \mathbb {R}\rightarrow S_{1}^{2}\) of r defined by

$$ \varphi=\varphi(\sigma^{\ast})=\frac{1}{\sqrt{2}\,\rho}\left(a\,T(\sigma)+b\,B_{2}(\sigma)\right),{\quad} a^{2}- b^{2}=2. $$
(13)

Theorem 2

Let \(r:I\subset \mathbb {R}\rightarrow S_{1}^{2}\) be a regular unit speed spacelike curve lying fully on \(S^{2}_{1}\) with the moving equiform-Bishop frame {T,B1,B2}. If \({\varphi }:I\subset \mathbb {R}\rightarrow S_{1}^{2}\) is the spacelike equiform-Bishop TB2-Smarandache curve of r=r(σ) with non-zero natural curvature functions, then its Frenet frame {Tφ,Nφ,Bφ} is given by

$$ {\left(\begin{array}{c} T_{\varphi} \\ N_{\varphi} \\ B_{\varphi} \end{array} \right)}\,=\,\left(\!\begin{array}{ccc} \frac{- {bK}_{2}}{\rho\sqrt{b^{2}K^{2}_{2}+ a^{2}(1-K^{2}_{2})}} & \frac{a}{\rho\sqrt{b^{2}K^{2}_{2}+ a^{2}(1-K^{2}_{2})}} & \frac{aK_{2}}{\rho\sqrt{b^{2}K^{2}_{2}+ a^{2}(1-K^{2}_{2})}} \\ \frac{\xi_{1}}{\rho\sqrt{\xi_{1}^{2}+\xi_{2}^{2}-\xi_{3}^{2}}} & \frac{\xi_{2}}{\rho\sqrt{\xi_{1}^{2}+\xi_{2}^{2}-\xi_{3}^{2}}}& \frac{\xi_{3}}{\rho\sqrt{\xi_{1}^{2}+\xi_{2}^{2}-\xi_{3}^{2}}} \\ \frac{a(\xi_{2}K_{2}-\xi_{3})}{\Delta_{2}}& \frac{a\xi_{1}K_{2}- b\xi_{3}K_{2}}{\Delta_{2}} & \frac{-(a\xi_{1}+ b\xi_{2}K_{2})}{\Delta_{2}} \end{array} \!\right)\!\!\left(\begin{array}{c}T \\ B_{1} \\ B_{2} \end{array} \right)\!, $$
(14)

where

$$ \begin{aligned} &\xi_{1}=\left[{bK}_{1}+a (K_{2}-1)\right]\left[(a-{bK}_{2})^{2}- a^{2}K^{2}_{2}\right], \\&\xi_{2}=-bK'_{1}\left[(a-{bK}_{2})^{2}- a^{2}K^{2}_{2}\right]+(a-{bK}_{1})\left[bK'_{2}(a-{bK}_{2})+ a^{2}K_{2}K'_{2}\right],\\&\xi_{3}=-2({aK}_{1}K_{2}+K'_{2})\left[(a-{bK}_{2})^{2}- a^{2}K^{2}_{2}\right]+{aK}_{2}\left[bK'_{2}(a-{bK}_{2})- a^{2}K_{2}K'_{2}\right],\\&\Delta_{2}=\rho^{2}\sqrt{\xi_{1}^{2}+\xi_{2}^{2}-\xi_{3}^{2}}\sqrt{b^{2}K^{2}_{2}+ a^{2}(1-K^{2}_{2})}:{\quad} K_{2}\neq\frac{\pm a}{\sqrt{a^{2}- b^{2}}}. \end{aligned} $$
(15)

Proof

Differentiationg Eq. (13) with respect to σ and using Eq. (5), we have

$$ {\begin{aligned}{ \varphi'(\sigma^{\ast})=\frac{d\varphi}{d\sigma^{\ast}}\frac{d\sigma^{\ast}}{d\sigma}=\frac{1}{\sqrt{2}\,\rho}\left({bK}_{2}\,T(\sigma)+a\, B_{1}(\sigma)+{aK}_{2}\,B_{2}(\sigma)\right),} \end{aligned}} $$
(16)

then, we have

$$ {\begin{aligned} T_{\varphi}(\sigma^{\ast})=\frac{1}{\rho\sqrt{b^{2}K^{2}_{2}+ a^{2}\left(1-K^{2}_{2}\right)}}\left({bK}_{2}\,T(\sigma)+a\, B_{1}(\sigma)+{aK}_{2}\,B_{2}(\sigma)\right), \end{aligned}} $$
(17)

where

$$ \frac{d\sigma^{\ast}}{d\sigma}=\frac{\sqrt{b^{2}K^{2}_{2}+ a^{2}\left(1-K^{2}_{2}\right)}}{\sqrt{2}}\,. $$
(18)

Then

$${}{\begin{aligned} T'_{\varphi}(\sigma^{\ast})&=\frac{\sqrt{2}}{\rho\left[b^{2}K^{2}_{2}+ a^{2}\left(1-K^{2}_{2}\right)\right]^{2}}\left(\xi_{1}T(\sigma)+\xi_{2}B_{1}(\sigma)\right.\\ & \left. \quad+\xi_{3} B_{2}(\sigma)\right), \end{aligned}} $$

where

$${\begin{aligned} &\xi_{1}=\left[{bK}_{1}+a (K_{2}-1)\right]\left[(a-{bK}_{2})^{2}- a^{2}K^{2}_{2}\right], \\&\xi_{2}=-bK'_{1}\left[(a-{bK}_{2})^{2}- a^{2}K^{2}_{2}\right]+(a-{bK}_{1})\left[bK'_{2}(a-{bK}_{2})+ a^{2}K_{2}K'_{2}\right],\\ &\xi_{3}=-2\left({aK}_{1}K_{2}+K'_{2}\right)\left[(a-{bK}_{2})^{2}-a^{2}K^{2}_{2}\right]\!+{aK}_{2}\left[bK'_{2}(a-{bK}_{2})- a^{2}K_{2}K'_{2}\right]. \end{aligned}} $$

Therefore, the natural curvature functions κφ,τφ can be expressed as follows:

$${\kappa}_{\varphi}(\sigma^{\ast})=\frac{\sqrt{2}\sqrt{\xi_{1}^{2}+\xi_{2}^{2}-\xi_{3}^{2}}}{\left[b^{2}K^{2}_{2}+ a^{2}\left(1-K^{2}_{2}\right)\right]^{2}}, $$

and

$$ N_{\varphi}(\sigma^{\ast})=\frac{\xi_{1}T(\sigma)+\xi_{2}B_{1}(\sigma)+\xi_{3} B_{2}(\sigma)}{\rho\sqrt{\xi_{1}^{2}+\xi_{2}^{2}-\xi_{3}^{2}}}. $$

Also, the binormal vector of φ is

$$\begin{aligned} {}B_{\varphi}(\sigma^{\ast})&\!=\frac{1}{\Delta_{2}}\left\{a(\xi_{2}K_{2}-\xi_{3})T(\sigma)\,+\,(a\xi_{1}K_{2}- b\xi_{3}K_{2})B_{1}(\sigma)\right. \\ & \left. \quad-(a\xi_{1}+ b\xi_{2}K_{2})B_{2}(\sigma)\right\}, \end{aligned} $$

where

$$\Delta_{2}=\rho^{2}\sqrt{\xi_{1}^{2}+\xi_{2}^{2}-\xi_{3}^{2}}\sqrt{b^{2}K^{2}_{2}+ a^{2}\left(1-K^{2}_{2}\right)}. $$

Differentiating Eq. (16) with respect to σ, we get

$$\begin{aligned} \varphi^{\prime\prime}(\sigma^{\ast})&=\frac{1}{\sqrt{2}\,\rho}\left\{-{\varepsilon}[a+b(K_{1}K_{2}+K'_{1})]T(\sigma)\right.\\ & \left.\quad-{\varepsilon} {bK}_{2}\,B_{1}(\sigma)+\left[{\varepsilon} b K^{2}_{2}-aK'_{1}\right]B_{2}(\sigma) \right\},\end{aligned} $$

and

$$\varphi^{\prime\prime\prime}(\sigma^{\ast})= \frac{1}{\sqrt{2}\,\rho}\left(\alpha_{1}T(\sigma)+\alpha_{2}B_{1}(\sigma)+\alpha_{3}B_{2}(\sigma)\right), $$

where

$$\begin{aligned} &\alpha_{1}=b K_{2}+\left[a K'_{1}- b K^{2}_{2}-K^{\prime\prime}_{1}-(K_{1}K_{2})'\right], \\&\alpha_{2}= b (2K_{2}K'_{2}-2K'_{1}-K_{1}K_{2})-aK^{\prime\prime}_{1},\\&\alpha_{3}=- K_{2}\left[a+b(K_{1}K_{2}+K'_{1})\right]. \end{aligned} $$

Then

$${\begin{aligned} {\tau}_{\varphi}=\frac{\sqrt{2}}{\rho}\left\{\frac{\begin{aligned}&[ {bK}_{2}^{2}-aK'_{1}][ b \alpha_{2}K_{2}-a \alpha_{1}]+[b^{2}\alpha_{3}- a b \alpha_{1}]K^{2}_{2}\\&+ a(\alpha_{3}+\alpha_{2}K_{2})[a+b(K_{1}K_{2}+K'_{1})] \end{aligned}} {\begin{aligned}&a^{4}{K'_{1}}^{4}+\left[ a K_{2}\left(a+b(K_{1}K_{2}+K'_{1})\right)\right]^{2}\\&- \left[b^{2}K^{2}_{2}+ a\left(a+b(K_{1}K_{2}+K'_{1})\right) \right]^{2}\end{aligned}} \right\}\,. \end{aligned}} $$

□

Corollary 2

Let \(r:I\subset \mathbb {R}\rightarrow S_{1}^{2}\) be a regular unit speed spacelike curve lying fully on \(S^{2}_{1}\) with the moving equiform-Bishop frame {T,B1,B2}. If the base curve r=r(s) is contained in a plane, then the spacelike equiform-Bishop TB2-Smarandache curve is a circular helix if \(\,K_{2}\neq \pm \frac {a}{\sqrt {2}}\) and K2≠±1 and its natural curvature functions are dependent only on the second equiform-Bishop curvature and given by

$$ \begin{aligned} &{\kappa}_{\varphi}(\sigma^{\ast})=\frac{\sqrt{2}\,{bK}_{2}\sqrt{1-K^{2}_{2}}} {b^{2}K^{2}_{2}+ a^{2}\left(1-K^{2}_{2}\right)},\\ & {\tau}_{\varphi}(\sigma^{\ast})=\left\{\frac{\sqrt{2}}{\rho}\right\}\left\{\frac{K_{2}\left(3 b^{2}K^{2}_{2}-a^{2}\right)} { a^{3}\left(1-K^{2}_{2}\right)}\right\}. \end{aligned} $$
(19)

Definition 4

Let \(r:I\subset \mathbb {R}\rightarrow S_{1}^{2}\) be a regular unit speed spacelike curve lying fully on \(S^{2}_{1}\). The spacelike equiform-Bishop B1B2-Smarandache curve \({\varphi }:I\subset \mathbb {R}\rightarrow S_{1}^{2}\) of r defined by

$$ \varphi=\varphi(\sigma^{\ast})=\frac{1}{\sqrt{2}\,\rho}\left(a\,B_{1}(\sigma)+b\,B_{2}(\sigma)\right),{\quad} a^{2}-b^{2}=2. $$
(20)

Theorem 3

Let \(r:I\subset \mathbb {R}\rightarrow S_{1}^{2}\) be a regular unit speed spacelike curve lying fully on \(S^{2}_{1}\) with the moving equiform-Bishop frame {T,B1,B2}. If \({\varphi }:I\subset \mathbb {R}\rightarrow S_{1}^{2}\) is the spacelike equiform-Bishop B1B2-Smarandache curve of r=r(σ) with non-zero natural curvature functions, then its Frenet frame {Tφ,Nφ,Bφ} is given by

$$ \left(\begin{array}{c} T_{\varphi} \\ N_{\varphi} \\ B_{\varphi} \end{array} \right)=\left(\begin{array}{ccc} \frac{-1 }{\rho}\,\,\, & 0\,\,\, & 0 \\ 0 \,\,\,& \frac{-1}{\rho\sqrt{1- K^{2}_{2}}}\,\,\,& \frac{K_{2}}{\rho\sqrt{1- K^{2}_{2}}} \\ 0\,\,\,& \frac{-K_{2}}{\rho^{2}\sqrt{1- K^{2}_{2}}}\,\,\, & \frac{1}{\rho^{2}\sqrt{1- K^{2}_{2}}} \end{array} \right)\left(\begin{array}{c} T \\ B_{1} \\ B_{2} \end{array} \right),{\quad} K_{2}\neq\pm\,1. $$
(21)

Proof

Differentiationg Eq. (20) with respect to σ and using Eq. (5), we get

$$ \varphi'(\sigma^{\ast})=\frac{d\varphi}{d\sigma^{\ast}}\frac{d\sigma^{\ast}}{d\sigma}=\frac{-(a+{bK}_{2})T(\sigma)}{\sqrt{2}\,\rho}, $$
(22)

hence

$$ T_{\varphi}(\sigma^{\ast})=\frac{- \,T(\sigma)}{\rho}, $$
(23)

with the parameterization

$$ \frac{d\sigma^{\ast}}{d\sigma}=\frac{a+{bK}_{2}}{\sqrt{2}}\,. $$
(24)

Differentiating Eq. (23) with respect to σ, we have

$$T'_{\varphi}(\sigma^{\ast})=\frac{-\sqrt{2}\,}{\rho(a+{bK}_{2})}\left(B_{1}(\sigma)-K_{2}\, B_{2}(\sigma)\right). $$

The curvature of φ is given by

$${\kappa}_{\varphi}(\sigma^{\ast})=\frac{\sqrt{2}\sqrt{1- K^{2}_{2}}} {a+{bK}_{2}},{\quad} K_{2}\neq \frac{-a}{b}. $$

Furthermore, the principal normal and binormal vectors of φ are defined as follows:

$$N_{\varphi}(\sigma^{\ast})=\frac{-1}{\rho\sqrt{1- K^{2}_{2}}}\left(B_{1}(\sigma)-K_{2}\, B_{2}(\sigma)\right), $$
$$ B_{\varphi}(\sigma^{\ast})=\frac{1}{\rho^{2}\sqrt{1-{\varepsilon} K^{2}_{2}}}\left(-K_{2}\, B_{1}(\sigma)+ B_{2}(\sigma)\right). $$

From Eq. (22), we get

$$\begin{aligned} \varphi^{\prime\prime}(\sigma^{\ast})&= \frac{-1}{\sqrt{2}\,\rho}\left\{bK'_{2}\,T(\sigma)+(a+{bK}_{2})B_{1}(\sigma)\right. \\& \left.\quad-K'_{2}(a+{bK}_{2})B_{2}(\sigma) \right\}, \end{aligned} $$

similarly

$${\begin{aligned} \varphi^{\prime\prime\prime}(\sigma^{\ast})=&\frac{-1}{\sqrt{2}\,\rho}\left(\left[bK^{\prime\prime}_{2}+(a+{bK}_{2})(K_{2}K'_{2}-1)\right]T(\sigma)+2bK'_{2}\,B_{1}(\sigma)\right.\\&-\left.\left[(a+{bK}_{2})K^{\prime\prime}_{2}+K'_{2}({aK}_{2}+bK'_{2})\right]B_{2}(\sigma)\right). \end{aligned}} $$

Then, we obtain the torsion of φ as follows. Then

$${\tau}_{\varphi}=\frac{\sqrt{2}}{\rho}\left\{\frac{(a+{bK}_{2})K^{\prime\prime}_{2}+K'_{2}({aK}_{2}+3bK'_{2})} {({K'_{2}}^{2}-1)(a+{bK}_{2})^{2}} \right\}\,. $$

□

Corollary 3

Let \(r:I\subset \mathbb {R}\rightarrow S_{1}^{2}\) be a regular unit speed spacelike curve lying fully on \(S^{2}_{1}\) with the moving equiform-Bishop frame {T,B1,B2}. If the base curve r=r(s) is contained in a plane, then the spacelike equiform-Bishop B1B2-Smarandache curve is also contained in a plane.

Definition 5

Let \(r:I\subset \mathbb {R}\rightarrow S_{1}^{2}\) be a regular unit speed spacelike curve lying fully on \(S^{2}_{1}\). The spacelike equiform-Bishop TB1B2-Smarandache curve \({\varphi }:I\subset \mathbb {R}\rightarrow S_{1}^{2}\) of r defined by

$$ \begin{aligned} \varphi=\varphi(\sigma^{\ast})&=\frac{1}{\sqrt{3}\,\rho}\left(a\,T(\sigma)+b\,B_{1}(\sigma)++c\,B_{2}(\sigma)\right), \\&\quad a^{2}+ b^{2}-c^{2}=3. \end{aligned} $$
(25)

Theorem 4

Let \(r:I\subset \mathbb {R}\rightarrow S_{1}^{2}\) be a regular unit speed spacelike curve lying fully on \(S^{2}_{1}\) with the moving equiform-Bishop frame {T,B1,B2}. If \({\varphi }:I\subset \mathbb {R}\rightarrow S_{1}^{2}\) is the spacelike equiform-Bishop TB1B2-Smarandache curve of r=r(σ) with non-zero natural curvature functions, then its Frenet frame {Tφ,Nφ,Bφ} is given by

$$ \left(\begin{array}{c} T_{\varphi} \\ N_{\varphi} \\ B_{\varphi} \end{array} \right)=\left(\begin{array}{ccc} \frac{-(b+{cK}_{2})}{\rho\sqrt{(b+{cK}_{2})^{2}+(a^{2}-c^{2}K^{2}_{2})}} & \frac{a}{\rho\sqrt{(b+{cK}_{2})^{2}+(a^{2}-c^{2}K^{2}_{2})}} & \frac{-{cK}_{1}}{\rho\sqrt{(b+{cK}_{2})^{2}+(a^{2}-c^{2}K^{2}_{2})}} \\ \frac{\ell_{1}}{\rho\sqrt{\ell_{1}^{2}+\ell_{2}^{2}-\ell_{3}^{2}}} & \frac{\ell_{2}}{\rho\sqrt{\ell_{1}^{2}+\ell_{2}^{2}-\ell_{3}^{2}}}& \frac{\ell_{3}}{\rho\sqrt{\ell_{1}^{2}+\ell_{2}^{2}-\ell_{3}^{2}}} \\ \frac{-(a\,\ell_{3}+c\,\ell_{2}K_{1})}{\Delta_{3}}& \frac{c\,\ell_{1}K_{1}-\ell_{3}(b+{cK}_{2})}{\Delta_{3}} & \frac{-[a\,\ell_{1}+\ell_{2}(b+{cK}_{2})]}{\Delta_{3}} \end{array} \right)\left(\begin{array}{c} T \\ B_{1} \\ B_{2} \end{array} \right), $$
(26)

where

$$ {\begin{aligned} &\ell_{1}=(b+{cK}_{2})\left[a^{2}K_{2}K'_{2}-c(b+{cK}_{2})K'_{2}\right]-\left[(b+{cK}_{2})^{2}+a^{2}(1-K^{2}_{2})\right]\left[cK'_{2}+a(1-K_{2}^{2})\right], \\&\ell_{2}=(b+{cK}_{2})\left[(b+{cK}_{2})^{2}+a^{2}(1-K^{2}_{2})\right]-a\left[a^{2}K_{2}K'_{2}-c(b+{cK}_{2})K'_{2}\right],\\&\ell_{3}=\left[b+{cK}_{2}-aK'_{2}\right]\left[(b+{cK}_{2})^{2}+a^{2}(1-K^{2}_{2})\right]+{aK}_{1}K_{2}\left[a^{2}K_{2}K'_{2}-c(b+{cK}_{2})K'_{2}\right],\\&\Delta_{3}=\rho^{2}\sqrt{\ell_{1}^{2}+\ell_{2}^{2}-\ell_{3}^{2}}\sqrt{(b+{cK}_{2})^{2}+(a^{2}-c^{2}K^{2}_{2})}. \end{aligned}} $$
(27)

Proof

Differentiationg Eq. (25) with respect to σ and using Eq. (5), this leads to

$$ {\begin{aligned} \varphi'(\sigma^{\ast})=\frac{d\varphi}{d\sigma^{\ast}}\frac{d\sigma^{\ast}}{d\sigma}=\frac{1}{\sqrt{3}\,\rho}\left(-(b+{cK}_{2})\,T(\sigma)+a\, B_{1}(\sigma)-{cK}_{1}\,B_{2}(\sigma)\right), \end{aligned}} $$
(28)

then

$$ T_{\varphi}(\sigma^{\ast})=\frac{-(b+{cK}_{2})\,T(\sigma)+a\, B_{1}(\sigma)-{cK}_{1}\,B_{2}(\sigma)}{\rho\sqrt{(b+{cK}_{2})^{2}+\left(a^{2}-c^{2}K^{2}_{2}\right)}}, $$
(29)

where

$$ \frac{d\sigma^{\ast}}{d\sigma}=\frac{\sqrt{(b+{cK}_{2})^{2}+\left(a^{2}-c^{2}K^{2}_{2}\right)}}{\sqrt{3}}\,. $$
(30)

Then, from Eq. (29), we get

$$T'_{\varphi}(\sigma^{\ast})=\frac{\sqrt{3}\left(\ell_{1}T(\sigma)+\ell_{2}B_{1}(\sigma)+\ell_{3} B_{2}(\sigma)\right)}{\rho\left[(b+{cK}_{2})^{2}+\left(a^{2}-c^{2}K^{2}_{2}\right)\right]^{2}}, $$

where

$${\begin{aligned} &\ell_{1}=(b+{cK}_{2})\left[a^{2}K_{2}K'_{2}-c(b+{cK}_{2})K'_{2}\right]-\left[(b+{cK}_{2})^{2}+a^{2}(1-K^{2}_{2})\right]\left[cK'_{2}+a(1-K_{2}^{2})\right], \\&\ell_{2}=(b+{cK}_{2})\left[(b+{cK}_{2})^{2}+a^{2}(1-K^{2}_{2})\right]-a\left[a^{2}K_{2}K'_{2}-c(b+{cK}_{2})K'_{2}\right],\\&\ell_{3}=\left[b+{cK}_{2}-aK'_{2}\right]\left[(b+{cK}_{2})^{2}+a^{2}(1-K^{2}_{2})\right]+{aK}_{1}K_{2}\left[a^{2}K_{2}K'_{2}-c(b+{cK}_{2})K'_{2}\right]. \end{aligned}} $$

Then, the curvature and the principal normal vector of φ are respectively

$${\kappa}_{\varphi}(\sigma^{\ast})=\frac{\sqrt{3}\sqrt{\ell_{1}^{2}+\ell_{2}^{2}-\ell_{3}^{2}}}{\left[(b+{cK}_{2})^{2}+\left(a^{2}-c^{2}K^{2}_{2}\right)\right]^{2}}, $$

and

$$ N_{\varphi}(\sigma^{\ast})=\frac{\ell_{1}T(\sigma)+\ell_{2}B_{1}(\sigma)+\ell_{3} B_{2}(\sigma)}{\rho\sqrt{\ell_{1}^{2}+\ell_{2}^{2}-\ell_{3}^{2}}}. $$

Besides, the binormal vector of φ is given by

$${\begin{aligned}B_{\varphi}(\sigma^{\ast})=&\frac{1}{\Delta_{3}}\left\{-(a\,\ell_{3}+c\,\ell_{2}K_{1})T(\sigma)+\left[c\,\ell_{1}K_{1}-\ell_{3}(b+{cK}_{2})\right]B_{1}(\sigma)\right. \\ & \left.-\left[a\,\ell_{1}+\ell_{2}(b+{cK}_{2})\right]B_{2}(\sigma)\right\},\end{aligned}} $$

where

$$\Delta_{3}=\rho^{2}\sqrt{\ell_{1}^{2}+\ell_{2}^{2}-\ell_{3}^{2}}\sqrt{(b+{cK}_{2})^{2}+\left(a^{2}-c^{2}K^{2}_{2}\right)}\,. $$

The derivatives φ′′ and φ′′′ of φ are

$${\begin{aligned} \varphi^{\prime\prime}(\sigma^{\ast})=&\frac{1}{\sqrt{3}\,\rho}\left\{-\left[a+c\left(K'_{2}-K_{1}K_{2}\right)\right]T(\sigma)-\left[b+{cK}_{2}\right]B_{1}(\sigma)\right. \\&\left.+\left[(b+{cK}_{2})K_{2}-cK'_{1}\right]B_{2}(\sigma) \right\}, \end{aligned}} $$

and

$$\varphi^{\prime\prime\prime}(\sigma^{\ast})=\frac{1}{\sqrt{3}\,\rho}\left(\gamma_{1}T(\sigma)+\gamma_{2}B_{1}(\sigma)+\gamma_{3}B_{2}(\sigma)\right), $$

where

$$\begin{aligned} &\gamma_{1}=c\left(K_{2}{-K}^{\prime\prime}_{2}\right)-K_{2}\left[b+{cK}_{2}-3aK'_{2}\right], \\&\gamma_{2}=-\left[2cK'_{2}+a\left(1-K_{2}^{2}\right)\right],\\&\gamma_{3}=cK'_{2}-aK^{\prime\prime}_{2}+K_{2}\left[2cK'_{2}+a\left(1-K_{2}^{2}\right)\right]. \end{aligned} $$

Then

$${\begin{aligned} \tau_{\varphi}=\frac{\sqrt{3}}{\rho}\left\{ \begin{array}{c} \frac{ \begin{aligned} &a^2K'_2+\left[b+cK_{2}\right]\left[(\gamma_2-\gamma_3)(b+cK_2)+a\,\gamma_{1}(1-K_1)-a\,\gamma_3K'_{2}\right]\\ &+a\left(\gamma_3+\gamma_2K_{1}\right)\left[cK'_2-a\left(1-K_{2}^{2}\right)\right] \end{aligned}} {\begin{aligned} &\left[a^2K'_2-a(b+cK_2)(1-K_1)\right]^2+\left[aK_{1}\left[cK'_2+a\left(1-K^{2}_{2}\right)\right]\right.\\ &\left.+(b+cK_2)\left[b+cK_2+aK'_{2}\right]\right]^2 -\left[(b+cK_2)^2+a\left[cK'_2+a\left(1-K_{2}^{2}\right)\right]\right]^2 \end{aligned}} \end{array}\right\}\,. \end{aligned}} $$

□

Corollary 4

Let \(r:I\subset \mathbb {R}\rightarrow S_{1}^{2}\) be a regular unit speed spacelike curve lying fully on \(S^{2}_{1}\) with the moving equiform-Bishop frame {T,B1,B2}. If the base curve r=r(s) is contained in a plane, then the spacelike equiform-Bishop TB1B2-Smarandache curve is a circular helix if \(\,K_{2}\neq \pm \frac {a^{2}+b^{2}}{2}\) and K2≠±1. Also, its natural curvature functions are dependent only on the second equiform-Bishop curvature and given by

$$ \begin{aligned} &{\kappa}_{\varphi}(\sigma^{\ast})=\frac{a\,\sqrt{3\left(1-K^{2}_{2}\right)}} {(b+{cK}_{2})^{2}+\left(a^{2}-c^{2}K^{2}_{2}\right)},\\ & {\tau}_{\varphi}(\sigma^{\ast})\,=\,\left\{\frac{\sqrt{3}}{\rho}\right\} \left\{\frac{\begin{aligned}&{abK}_{2}(b+{cK}_{2})(K_{1}+K_{2})-a^{3}K_{1}\left(1-K_{2}^{2}\right)^{2}\\ &+a(b+{cK}_{2})\left(1-K_{2}^{2}\right)\left[a+c(1+K_{1}K_{2})+2(b+{cK}_{2})\right]\end{aligned}} {\begin{aligned}&a^{4}(1-K_{1})^{2}\left(1-K_{2}^{2}\right)^{2}+a(1-K_{1})(b+{cK}_{2})\left[b+{cK}_{2}\right.\\&\left.-2(1-K_{2}^{2})\right]\end{aligned}}\right\}. \end{aligned} $$
(31)

Example

In this section, we construct a computational examples of the spacelike equiform-Bishop Smarandache curves in \(\mathbb {R}_{1}^{3}\) with the moving equiform-Bishop frame {T,B1,B2} of the spacelike equiform-Bishop curve r=r(σ). Let r(s)=(s,s sin(lns),s cos(lns)) be a unit speed spacelike curve parametrized by arc-length s with spacelike principal normal vector in \(\mathbb {R}_{1}^{3}\) (see Fig. 1). Then, it is easy to show that

$$t(s)=\left(1,\sin{(\ln{s})}+\cos{(\ln{s})},\cos{(\ln{s})}-\sin{(\ln{s})}\right). $$
Fig. 1
figure1

Spacelike curve r=r(s) on \(S_{1}^{2}\)

Full size image

This vector is spacelike and future-directed, we have \({\kappa }=\frac {\sqrt {2}}{s}\). Hence,

$${\left\{\begin{array}{cc} n(s)=\frac{1}{\sqrt{2}}\left(0,\cos{(\ln{s})}-\sin{(\ln{s})},-\sin{(\ln{s})}-\cos{(\ln{s})}\right),\\ b(s)=\frac{1}{\sqrt{2}}\left(2,\sin{(\ln{s})}+\cos{(\ln{s})},\cos{(\ln{s})}-\sin{(\ln{s})}\right).\\ \end{array}\right.} $$

The torsion is \({\tau }=\frac {1}{s}\) and \(\theta (s)=\int \left (\frac {1}{s}\right)ds=\ln {s}+c\). Here, we can take c=0. From Eq. (4), we get \(k_{1}(s)=\left (\frac {\sqrt {2}}{s}\right)\cosh {(\ln s)}, k_{2}(s)=\left (\frac {\sqrt {2}}{s}\right)\sinh {(\ln s)}\). Also from Eq. (2), we get \(b_{1}(s)=-\int k_{1}(s)t(s)ds\) and \(b_{2}(s)=-\int k_{2}(s)t(s)ds\), then we have

$$\begin{aligned}& b_{1}(s)=\frac{1}{\sqrt{2}\,s}\left(s^{2}-1,s^{2}\,\sin{(\ln{s})}-\cos{(\ln{s})},\sin{(\ln{s})}+s^{2}\,\cos{(\ln{s})}\right),\\& b_{2}(s)=\frac{1}{\sqrt{2}\,s}\left(s^{2}+1,s^{2}\,\sin{(\ln{s})}+\cos{(\ln{s})},-\sin{(\ln{s})}+s^{2}\,\cos{(\ln{s})}\right). \end{aligned} $$

Now, the equiform-Bishop parameter is \(\sigma =\int k_{1}\,ds=\sqrt {2}\,\sinh {(\ln s)}+c\). In this case, we take c=0, then we have \(s=\left (\frac {\sigma +\sqrt {\sigma ^{2}+2}}{\sqrt {2}}\right)\) and \(\rho =\left (\frac {\sigma +\sqrt {\sigma ^{2}+2}}{\sqrt {2}\sqrt {\sigma ^{2}+2}}\right) \). Furthermore, the equiform-Bishop curvatures are given by

$$\left\{\begin{array}{c} K_{1}(\sigma)=\frac{1-\sigma\,\sqrt{\sigma^{2}+2}}{\sqrt{2}(\sigma^{2}+2)},\\ K_{2}(\sigma)=\frac{\sigma}{\sqrt{\sigma^{2}+2}}. \end{array}\right. $$

So the spacelike equiform-Bishop curve r=r(σ) is defined as (see Fig. 2

$${\begin{aligned} r(\sigma)=\left(\frac{\sigma+\sqrt{\sigma^{2}+2}}{\sqrt{2}}\right)\left(1,\sin{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}, \cos{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}\right). \end{aligned}} $$
Fig. 2
figure2

Spacelike equiform-Bishop curve r=r(σ) on \(S_{1}^{2}\)

Full size image

It easy to show that

$${\begin{aligned}T(\sigma)=&\left(\frac{\sigma+\sqrt{\sigma^{2}+2}}{\sqrt{2}\sqrt{\sigma^{2}+2}}\right)\left(1,\sin{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)} +\cos{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}\right.\\ &\left.,\cos{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}-\sin{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}\right). \end{aligned}} $$

It is easy to show that T is an equiform-Bishop spacelike vector. Also

$$ {\begin{aligned}B_{1}(\sigma)=&\left(\frac{\sigma+\sqrt{\sigma^{2}+2}}{2\sqrt{\sigma^{2}+2}}\right)\left(0,\cos{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)} -\sin{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}\right.\\ &\left.,-\sin{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}-\cos{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}\right). \end{aligned}} $$
$$ {\begin{aligned}B_{2}(\sigma)=&\left(\frac{\sigma+\sqrt{\sigma^{2}+2}}{2\sqrt{\sigma^{2}+2}}\right)\left(2,\sin{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)} +\cos{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}\right.\\ &\left.,\cos{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}-\sin{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}\right). \end{aligned}} $$

It is clear that B1 is an equiform-Bishop spacelike vector and B2 is an equiform-Bishop timelike vector. Moreover, if we take a=b=1, the spacelike equiform-Bishop TB1-Smarandache curve φ(σ∗) of the curve r(σ) is given by (see Fig. 3)

$${\begin{aligned}\varphi(\sigma^{\ast})=&\left(\frac{\sigma+\sqrt{\sigma^{2}+2}}{2\sqrt{\sigma^{2}+2}}\right)\left(\sqrt{2}, \left(\sqrt{2}-1\right)\sin{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}\right.\\ &\left.+\left(\sqrt{2}+1\right)\cos{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}, \left(\sqrt{2}-1\right)\cos{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}\right.\\ &\left.-\left(\sqrt{2}+1\right)\sin{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}\right). \end{aligned}} $$
Fig. 3
figure3

The spacelike equiform-Bishop TB1-Smarandache curve φ(σ∗) on \(S_{1}^{2}\)

Full size image

If we take a=3 and \(b=\sqrt {7}\), the spacelike equiform-Bishop TB2-Smarandache curve φ(σ∗) of the curve r(σ) is given by (see Fig. 4)

Fig. 4
figure4

The spacelike equiform-Bishop TB2-Smarandache curve φ(σ∗) on \(S_{1}^{2}\)

Full size image
$$ {\begin{aligned}\varphi(\sigma^{\ast})=&\left(3\sqrt{2}+\sqrt{7}\right)\left(\frac{\sigma+\sqrt{\sigma^{2}+2}}{2\sqrt{2}\sqrt{\sigma^{2}+2}}\right)\left(1, \sin{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}\right.\\ &\left.+\cos{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}, \cos{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}\right.\\ &\left.-\sin{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}\right).\end{aligned}} $$

If we take a=2 and \(b=\sqrt {2}\), the spacelike equiform-Bishop B1B2-Smarandache curve φ(σ∗) of the curve r(σ) is given by (see Fig. 5)

$${\begin{aligned}\varphi(\sigma^{\ast})=&\left(\frac{\sigma+\sqrt{\sigma^{2}+2}}{2\sqrt{2}\sqrt{\sigma^{2}+2}}\right)\left(2\sqrt{2},(2+\sqrt{2}) \cos{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}\right.\\ &\left.+(\sqrt{2}-2)\sin{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}, (\sqrt{2}-2)\cos{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}\right.\\ &\left.-(2+\sqrt{2})\sin{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}\right). \end{aligned}} $$

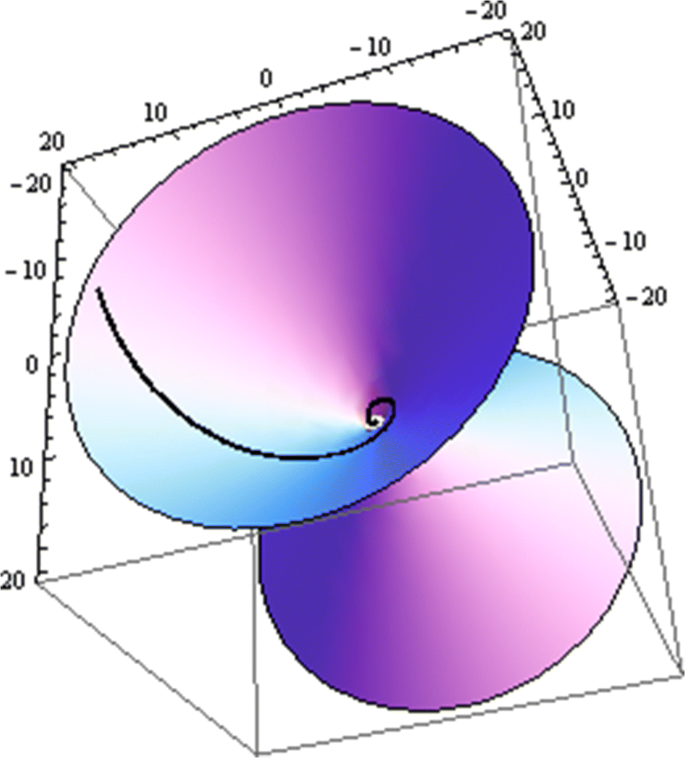

Fig. 5
figure5

The spacelike equiform-Bishop B1B2-Smarandache curve φ(σ∗) on \(S_{1}^{2}\)

Full size image

If we take a=2,b=1, and \(c=\sqrt {2}\), the spacelike equiform-Bishop TB1B2-Smarandache curve φ(σ∗) of the curve r(σ) is given by (see Fig. 6)

$${\begin{aligned}\varphi(\sigma^{\ast})=&\left(\frac{\sigma+\sqrt{\sigma^{2}+2}}{2\sqrt{3}\sqrt{\sigma^{2}+2}}\right)\left(4\sqrt{2}, \left(4\sqrt{2}-1\right)\,\sin{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}\right.\\ &\left.\!+\left(4\sqrt{2}+1\right)\cos{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}, \left(4\sqrt{2}+1\right)\,\cos{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}\right.\\ &\left.+\left(4\sqrt{2}-1\right)\sin{\left(\ln\left(\frac{\sigma+\sqrt{\sigma^{2}+4}}{\sqrt{2}}\right)\right)}\right). \end{aligned}} $$
Fig. 6
figure6

The spacelike equiform-Bishop TB1B2-Smarandache curve φ(σ∗) on \(S_{1}^{2}\)

Full size image

References

  1. 1

    Ashbacher, C.: Smarandache geometries. Smarandache Notions J. 8(1), 212–215 (1997). http://fs.unm.edu/SNJ9.pdf.

    MathSciNet  MATH  Google Scholar

  2. 2

    Smarandache, F.: Mixed Noneuclidean Geometries. Studii si Cercetari Stiintifice, University of Bacau. 8, 127–154 (1998). arXiv: math/0010119 10/2000.

    MathSciNet  MATH  Google Scholar

  3. 3

    Ozturk, U., Betul Koc Ozturk, E.: Smarandache curves according to curves on a spacelike surface in Minkowski 3-space \(\mathbb {R}_{1}^{3}\). J. Discret. Math, 1–10 (2014). http://doi.org/10.1155/2014/829581.

  4. 4

    Yilmaz, S., Savci, U.: Smarandache Curves and Applications According to Type-2 Bishop Frame in Euclidean 3-Space. Int. J. Math. Combinatorics. 2, 1–15 (2016). https://pdfs.semanticscholar.org/337b/40522d7884ec70e608aefc0c00faeb7d5202.pdf.

    Google Scholar

  5. 5

    Iseri, H.: Smarandache Manifolds. American Res. Press, Mansfield University, PA (2002). Associate Professor of Mathematics Department of Mathematics and Computer Information Science Mansfield University. http://fs.unm.edu/Iseri-book.pdf.

  6. 6

    Mao, L.: Smarandache Geometries & Map Theory with Applications. Chinese Branch Xiquan House, Academy of Mathematics and Systems Chinese Academy of Sciences, Beijing (2006).

    Google Scholar

  7. 7

    Bektaş, Ö., Yüce, S.: Special Smarandache curves according to Darboux frame in Euclidean 3- space. Rom. J. Math. Comp. Sci. 3, 48–59 (2013). http://www.rjm-cs.ro/BektasYuce.pdf.

    MATH  Google Scholar

  8. 8

    Solouma, E. M.: Special Smarandache curves recording by curves on a spacelike surface in Minkowski space-time. PONTE J. 73(2), 251–263 (2017). https://doi.org/10.21506/j.ponte.2017.2.20.

    Google Scholar

  9. 9

    Solouma, E. M.: Type-2 spacelike Bishop frame and an application to spherical image in Minkowski space-time. Int. J. Appl. Comput. Math. 3, 3575–3591 (2017). https://doi.org/10.1007/s40819-017-0316-6.

    MathSciNet  Article  Google Scholar

  10. 10

    Solouma, E. M.: Special equiform Smarandache curves in Minkowski space-time. J. Egy. Math. Soc. 25(3), 19–325 (2017). http://doi.org/10.1016/j.joems.2017.04.003.

    MathSciNet  MATH  Google Scholar

  11. 11

    Taşköprü, K., Tosun, M.: Smarandache curves on S 2. Boletim Soc. Paraneanse Matematica. 32(1), 51–59 (2014). http://doi.org/10.5269/bspm.v32i1.19242.

    MATH  Google Scholar

  12. 12

    López, R.: Differential geometry of curves and surfaces in Lorentz-Minkowski space. Inter. Elect. J. Geom. 7(1), 44–107 (2014). http://www.iejgeo.com/matder/dosyalar/makale-155/2014-1-5.pdf.

    MathSciNet  MATH  Google Scholar

  13. 13

    O’Neill, B.: Semi-Riemannian Geometry with Applications to Relativity. Academic press, New York (1983).

    Google Scholar

  14. 14

    Do, Carmo: M.P.: Differential Geometry of Curves and Surfaces Prentice Hall. Englewood Cliffs, NJ (1976).

    Google Scholar

  15. 15

    Turgut, M., Yılmaz, S.: Smarandache Curves in Minkowski Space-Time. Inter. J. Math. Comb. 3, 51–55 (2008). https://core.ac.uk/download/pdf/30439084.pdf.

    MathSciNet  MATH  Google Scholar

  16. 16

    Bishop, L. R.: There is more than one way to frame a curve. Amer. Math. Monthly. 82(3), 246–251 (1975). https://doi.org/10.2307/2319846.

    MathSciNet  Article  Google Scholar

  17. 17

    Bukcu, B., Karacan, M. K.: Bishop frame of the spacelike curve with a spacelike principal normal in Minkowski 3-space. Commun. Fac. Sci. Univ. Ank. Sér. A1 Math. Stat. 57(1), 13–22 (2008). https://scialert.net/eboardlivedna.php?issn=1819-3579&id=90.3579.

    MathSciNet  MATH  Google Scholar

  18. 18

    Bukcu, B., Karacan, M. K.: Bishop frame of the spacelike curve with a spacelike binormal in Minkowski 3-space. Selçuk. J. Appl. Math. 11(1), 15–25 (2010). http://sjam.selcuk.edu.tr/sjam/article/view/250/172.

    MathSciNet  MATH  Google Scholar

  19. 19

    Elsayied, H. K., Elzawy, M., Elsharkawy, A.: Equiform spacelike normal curves according to equiform-Bishop frame in \(E^{3}_{1}\). Math. Meth. Appl. Sci, 1–7 (2017). https://doi.org/10.1002/mma.4618.

Download references

Acknowledgements

The authors are grateful to the Editor in Chief and the referees for their efforts and constructive criticism which have improved the manuscript.

Funding

The author received no funding for this work.

Author information

Affiliations

  1. Department of Mathematics and Statistics, College of Science, Al Imam Mohammad Ibn Saud Islamic University, Riyadh, Kingdom of Saudi Arabia

    E. M. Solouma

  2. Department of Mathematics, Faculty of Science, Beni-Suef University, Beni Suef, Egypt

    E. M. Solouma

  3. Department of Mathematics, Faculty of Science, Aswan University, Aswan, Egypt

    W. M. Mahmoud

Authors
  1. E. M. Solouma
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. W. M. Mahmoud
    View author publications

    You can also search for this author in PubMed Google Scholar

Contributions

Both author read and approved the final manuscript.

Corresponding author

Correspondence to W. M. Mahmoud.

Ethics declarations

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Solouma, E., Mahmoud, W. On spacelike equiform-Bishop Smarandache curves on \(S_{1}^{2}\). J Egypt Math Soc 27, 7 (2019). https://doi.org/10.1186/s42787-019-0009-x

Download citation

Mathematical Subject Classification (2010)

  • 53B30
  • 53C40
  • 53C50

Keywords

  • Smarandache curve
  • Equiform Frenet frame
  • Bishop frame
  • Minkowski 3-space
