Numerical study of thermal radiation and mass transfer effects on free convection flow over a moving vertical porous plate using cubic B-spline collocation method
Journal of the Egyptian Mathematical Society volume 27, Article number: 36 (2019)
Abstract
In this paper, we present a numerical method based on cubic B-spline function for studying the effects of thermal radiation and mass transfer on free convection flow over a moving vertical porous plate. Similarity transformations reduced the governing partial differential equations of the fluid flow to a system of nonlinear ordinary differential equations which are solved numerically using a cubic B-spline collocation method. The effects of various physical parameters on the velocity, temperature, and concentration distributions are shown graphically, and the numerical values of physical quantities like skin friction, Nusselt number, and Sherwood number for various parameters are presented in tabular form and discussed.
Introduction
Free convection flow is important in many practical applications including cooling of electronic components, designs related to thermal insulation, material processing, and geothermal systems. The flow through porous media is important in many applications in science and engineering. Mixed convective flow past a semi-infinite vertical plate embedded in a porous medium incorporating the variable permeability in Darcy’s model studied by Mohammadein and El-Shaer [1]. Zhang et al. [2] presented transient and steady natural convection from a heat source embedded in a saturated porous layer. The effects of Dufour and Soret numbers on steady combined free-forced convective and mass transfer flow past a semi-infinite vertical flat plate in the presence of a uniform transverse magnetic field studied by Alam et al. [3]. Brewster studied the properties of thermal radiative transfer [4]. Bestman examined the natural convection boundary layer with suction and mass transfer in a porous medium [5]. Singh and Soundalgekar investigated the transient free convection in cold water past an infinite porous plate [6]. Hossain studied the effect of transpiration on combined heat and mass transfer in mixed convection along a vertical plate [7]. Makinde studied free convection flow with thermal radiation and mass transfer past a moving vertical porous plate [8]. Reddy et al. studied radiation and chemical reaction effects on MHD flow along a moving vertical porous plate [9]. Reddy et al. [10] studied the mass transfer effects on unsteady hydromagnetic free convective memory flow of incompressible and electrically conducting fluid flow past an infinite vertical plate through a porous medium. Heat transfer by natural convection from a vertical flat plate embedded in electrically conducting micropolar fluid-saturated porous medium using the Darcy-Brinkman-Forchheimer Boussinesq model in the presence of uniform magnetic field and thermal radiation was studied by Pal and Chatterjee [11]. Sharma et al. studied buoyancy effects on MHD unsteady convection of a radiating chemically reacting fluid past a moving porous vertical plate in a binary mixture [12]. Makinde et al. presented unsteady convection with chemical reaction and radiative heat transfer past a flat porous plate moving through a binary mixture [13]. Sajid et al. studied Darcy-Forchheimer flow of Maxwell nanofluid flow with nonlinear thermal radiation and activation energy [14]. Makinde and Olanrewaju presented unsteady mixed convection with Soret and Dufour effects past a porous plate moving through a binary mixture of chemically reacting fluid [15]. Makinde and Ogulu studied the effect of thermal radiation on the heat and mass transfer flow of a variable viscosity fluid past a vertical porous plate permeated by a transverse magnetic field [16]. Ogulu and Makinde presented unsteady hydromagnetic free convection flow of a dissipative and radiating fluid past a vertical plate with constant heat flux [17]. Caglar used the cubic B-spline for solving linear system of second-order boundary value problems [18]. This paper is organized as follows: In the section 2, we analyze the mathematical problem. In the section 3, we apply the cubic B-spline method. In the section 4, we investigate the numerical results and discussion. Finally, the conclusion of this study is given in the section 5.
Mathematical analysis
Consider unsteady flow and free convection heat and mass transfer of incompressible viscous fluid past a moving vertical porous plate. Let u and v be the velocity components along the x and the y directions, respectively. We choose the x axis that runs along the plate in the vertically upward direction and the y axis be taken perpendicular to it as shown in Fig. 1. The physical variables are functions of y and t only.
According to Boussinesq’s approximation, the governing equations that describe the physical situation can be written as:
with boundary conditions
where υ is the kinematic viscosity, g the acceleration due to gravity, T the temperature, C the concentration, D the coefficient of mass diffusivity, α the thermal diffusivity, k the thermal conductivity, qr the local radiative heat flux, β volumetric expansion coefficient due to temperature, λ volumetric expansion coefficient due to concentration, Tw, Cw are the uniform temperature and concentration of the fluid at the plate, respectively, T∞, C∞ are the temperature and concentration of the fluid far away from the plate, respectively, and U is the plate characteristic velocity. Using the Rosseland approximation [9], the radiative heat flux term is
where σ is the Stefan-Boltzmann constant and δ the mean absorption coefficient.
We introduce similarity variables and the dimensionless quantities,
From Eq. (1), v is either constant or a function of time. From [3], we choose
where c > 0 is the suction parameter. Then, from Eqs. (8) and (9) in Eqs. (2), (3), and (4), we obtain system of ordinary differential equations as follows:
with the boundary conditions
where Gr and Gc are the local free convection parameter, Pr is the Prandtl number, Ra is the radiation parameter, N is the temperature difference parameter, and Sc is the Schmidt number.
Cubic B-spline collocation method [12]
The cubic B-splines Bi(η) are given by
where h = ηi + 1 − ηi, i = 0, 1, …, n the values of the cubic B-spline Bi(η) and all its first and second derivatives vanish outside the interval (ηi − 2, ηi + 2) We establish the values of Bi(η) and its derivatives at the knots ηi − 2, ηi − 1, …, ηi + 2 in Table 1 as:
We consider the cubic B-spline function to the solutions of the problems (10)–(12) as follows:
where constants di(η), qi(η), and si(η)’s are to be determined from the collocation points ηi, i = 0, 1, …, n and the boundary conditions.
Using Eq. (15) and the cubic B-spline Bi(η) given by Eq. (14) and its principle twice derivatives \( {B}_i^{\prime}\left(\eta \right) \) and \( {B}_i^{{\prime\prime}}\left(\eta \right) \) at the knots and their values are summarized in Table 1, the values of fi, θi, Φi and their derivatives up to second order at the knots are
Substituting from Eqs. (16)–(18) in Eqs. (10)–(12), we find
with the boundary conditions
Solving the system of nonlinear Eqs. (19)–(22), we have the values of di, qi, and Si for −1 ≤ i ≤ n + 1, and substituting in Eqs. (16)–(18), we find the velocity distributions (f), the temperature distributions (θ), and the concentration distributions (Φ).
Numerical results and discussion
The problem of an unsteady free convection fluid flow past a moving vertical porous plate with thermal radiation and mass transfer has been computed for the velocity (f), the temperature (θ), and the concentration (Φ) with boundary layer for different parameters as Prandtl number (Pr), Schmidt number (Sc), thermal Grashof number (Gr), solutal Grashof number (Gc), the temperature difference parameter (N), radiation parameter (Ra), and suction parameter (c) with step size Δη = 0.05. In this study, we consider the following values: Pr = 0.71, …, 7.0, Sc = 0.5, …, 5.0, Gr = 5, …, 20, Gc = 5, …, 20, N = 0.1, Ra = 0, 0.1, …, 2.0 and c = 0.25, …, 1.0. In Figs. 2, 3, and 4, we observe an enhancement the velocity, temperature, and concentration distributions in the fluid according to above different values.
In Fig. 2, we observe the fluid velocity increased and after a very short distance from the plate reach to its maximum value and thereafter find a gradual decrease in the fluid velocity to zero. The fluid velocity enhances when there is a decrease in Prandtl number (Pr), Schmidt number (Sc), and suction parameter (c), although an increase in the thermal Grashof number (Gr), solutal Grashof number (Gc), and radiation parameter (Ra) will enhance the fluid velocity.

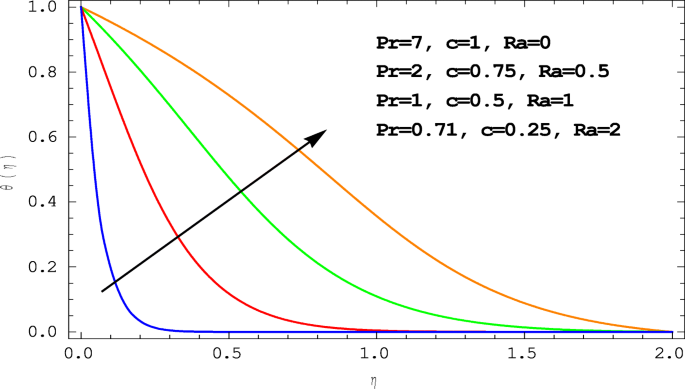

Figure 3 shows the fluid temperature decreased gradually to zero after some distance away from the plate. It observes that as an increase Prandtl number (Pr) and suction parameter (c) is a major decrease in the fluid temperature, while an increase radiation parameter (Ra) will enhance the fluid temperature.
Figure 4 shows the fluid concentration is maximum at the plate surface and decreases until vanishes at some distance away from the plate. It is noted that a decrease in Schmidt number (Sc) and suction parameter (c) will consolidate the fluid concentration.
Also, we investigated the distributions of the fluid velocity, the fluid temperature, and the fluid concentration for following default values: Gr = 5, Gc = 5, Pr  = 0.71, Sc = 0.5, Ra = 0.1, c = 0.25, and N = 0.1.
Figures 5 and 6 show fluid velocity distributions for different values of thermal Grashof number (Gr) and solutal Grashof number (Gc). The velocity enhances (increases) with an increase in thermal Grashof number (Gr) and solutal Grashof number (Gc). It is shown that the peak values of the fluid velocity increase near the plate rapidly and then decay smoothly to the initial velocity (zero). This is due to the fact that buoyancy force enhances fluid velocity and increases the boundary layer thickness with an increase in the value of Gr or Gc.

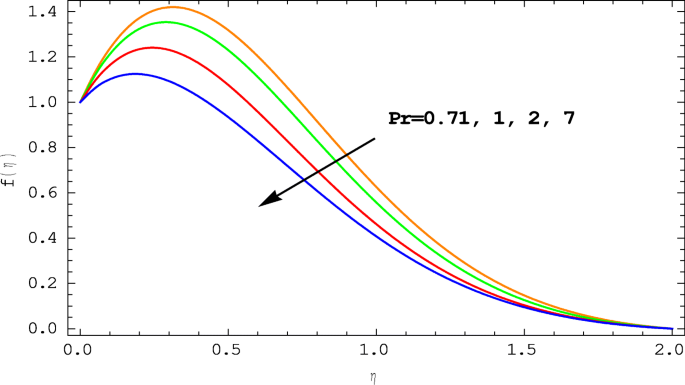

The influence of the Prandtl number (Pr) on the fluid velocity and the fluid temperature distributions is shown in Figs. 7 and 8 respectively. It is noted that an increase in the Prandtl number (Pr) results in a decrease of the velocity and a decrease of the temperature which using smaller values of (Pr) causes the boundary layer to be thicker reducing the rate of heat transfer and increasing the thermal conductivity; therefore, heat is able to diffuse away from the heated surface more rapidly than for higher values of (Pr).
The influence of the Schmidt number (Sc) on the fluid velocity and the fluid concentration distributions is shown in Figs. 9 and 10 respectively. It is observed that an increase in the Schmidt number (Sc) results in a decrease of the velocity and a decrease of the concentration. Physically, the increase of (Sc) means a decrease of molecular diffusion (D), which results in a decrease in the concentration boundary layer.
At different values of the suction parameter (c), it is illustrated that a decrease in the fluid velocity, the fluid temperature, and the fluid concentration occurs when there is an increase in the suction parameter (c) as shown in Figs. 11, 12, and 13. This is due to that the suction parameter retards the velocity of the flow field.
Figures 14 and 15 show the influence of the thermal radiation parameter (Ra) on the fluid velocity and the fluid temperature, which an increase of the thermal radiation parameter (Ra) results in an increase of the velocity and temperature within the boundary layer. This is due to the fact that an increase in the value of (Ra) implies increasing of thermal radiation in the thermal boundary layer which results in an increase in the value of the temperature profile in the thermal boundary layer.
Now, it is necessary to interest some physical quantities, which are important characteristics of fluid flow, rate of heat transfer, and rate of mass transfer:
-
(i)
The local shear wall Stress Ï„w is given by
and the dimensionless of local shear wall stress (the local skin friction H)
Substituting Eq. (16) in Eq. (24), we obtain
-
(ii)
The local surface heat flux qw is given by
and the dimensionless of the local surface heat flux (the local Nusselt number Nu)
Substituting Eq. (17) in Eq. (27), we obtain
-
(iii)
The local surface mass flux Sw is given by
and the dimensionless of the local surface mass flux (the local Sherwood number Mu)
Substituting Eq. (18) in Eq. (30), we obtain
So, we calculate the physical quantities, the local shear wall stress, the local surface heat flux, and the local surface mass flux for the following default values:
Tables 2 and 3 show an increase in skin friction (H); meanwhile, Nusselt number (Nu) and Sherwood number (Mu) are not influenced with an increase in thermal Grashof number (Gr) and solutal Grashof number (Gc) due to buoyancy effects.
Table 4 shows that an increase in Prandtl number (Pr) results in a decrease in skin friction (H) and an increase in Nusselt number (Nu), while Sherwood number (Mu) is not influenced. The reason for this is that smaller values of (Pr) are equivalent to increasing thermal conductivities, and therefore, heat is able to diffuse away from the heated plate more rapidly than for higher values of (Pr).
Also, Table 5 evidences that an increase in Schmidt number (Sc) results in a decrease in skin friction (H) and an increase in Sherwood number (Mu), while Nusselt number (Nu) is not affected, because the velocity and species concentration and the boundary layer thickness decrease.
An increase in thermal radiation parameter (Ra) results in an enhancement in skin friction (H) and Nusselt number (Nu) and is not affected in Sherwood number (Mu) as shown in Table 6. Higher values of radiation parameter (Ra) imply higher values of wall temperature.
At various values of the suction parameter (c), we obtain an increase in Nusselt number (Nu) and Sherwood number (Mu) and a decrease in skin friction (H) due to an increase in the suction parameter (c) which leads to a decrease in the velocity field as shown in Table 7.
Tables 8 and 9 show values of skin friction (H), Nusselt number (Nu), and Sherwood number (Mu) for different values of radiation parameter (Ra), suction parameter (c), and step size Δη = 0.08, which we compare our method with Makinde [8].
Conclusion
In this paper, we presented a numerical study using cubic B-spline method which transforms the equations governing the fluid flow to system of nonlinear algebraic equations. We investigated the effects of thermal radiation and mass transfer on an unsteady free convection flow over a moving vertical porous plate. However, from computational results, an increase in the thermal radiation results in an increase in the fluid velocity and temperature profiles. The rate of mass transfer is not affected which increases most parameters except at an increase Schmidt number and suction parameter the rate of mass transfer is enhanced. Numerical results show that the proposed method demonstrates efficient solutions of the considered problem and similar to Makinde [9] as in Tables 8 and 9.
Nomenclature
-
u The velocity component along the x direction
-
v The velocity component along the y direction
-
Ï… The kinematic viscosity
-
g The acceleration due to gravity
-
T The temperature
-
C The concentration
-
D The coefficient of mass diffusivity
-
α The thermal diffusivity
-
k The thermal conductivity
-
qr The local radiative heat flux
-
β The volumetric expansion coefficient due to temperature
-
λ The volumetric expansion coefficient due to concentration
-
Tw The uniform temperature of the fluid at the plate
-
Cw The uniform concentration of the fluid at the plate
-
T∞ The temperature of the fluid far away from the plate
-
C∞ The concentration of the fluid far away from the plate
-
U The plate characteristic velocity
-
σ The Stefan-Boltzmann constant
-
δ The mean absorption coefficient
-
η The dimensionless similarity variable
-
Gr and Gc The local free convection parameters
-
Pr The Prandtl number
-
Ra The radiation parameter
-
N The temperature difference parameter
-
Sc The Schmidt number
-
f The velocity distributions
-
θ The temperature distributions
-
Φ The concentration distributions
-
Ï„w The local shear wall stress
-
H The local skin friction
-
qw The local surface heat flux
-
NuThe local Nusselt number
-
Sw The local surface mass flux
-
Mu The local Sherwood number
